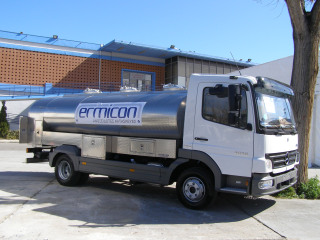

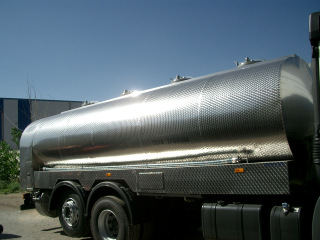

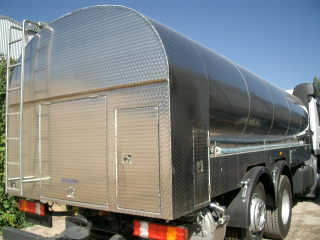

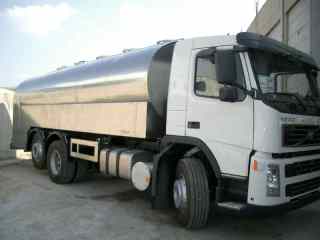

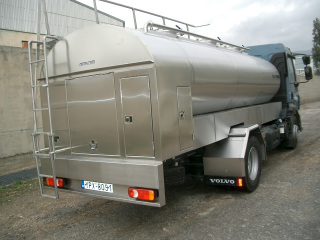

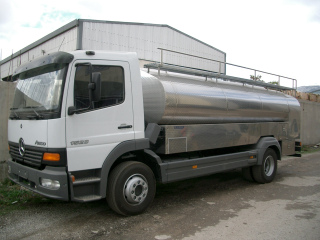

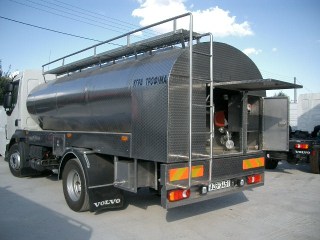

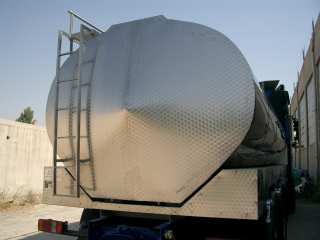

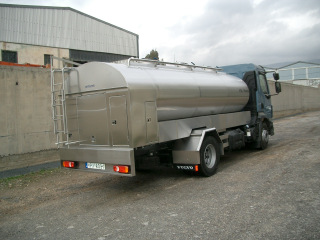

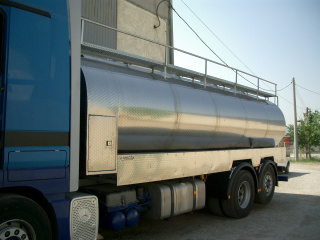

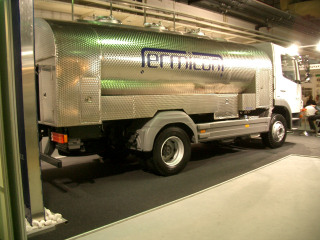

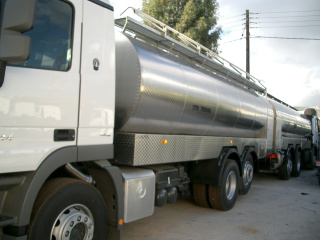

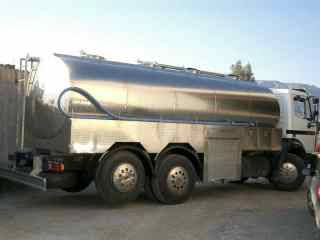

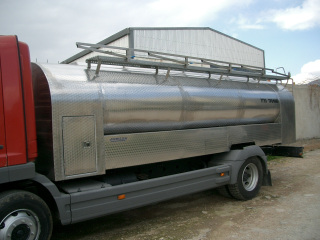

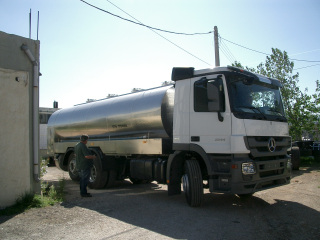

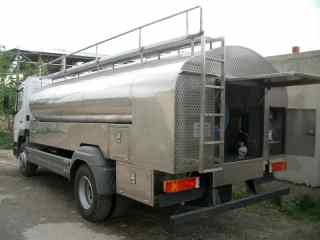

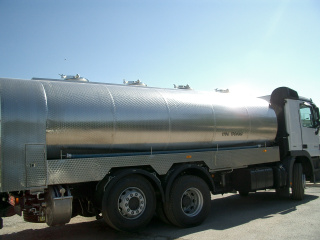

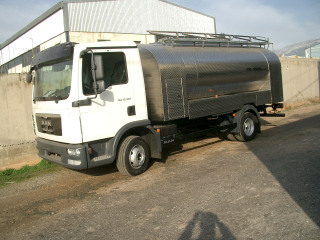

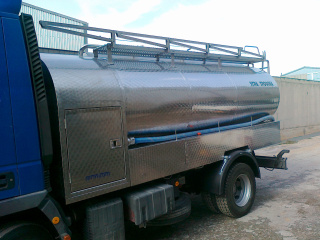

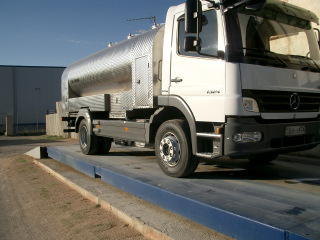

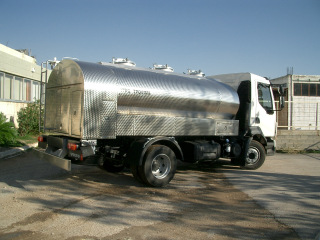

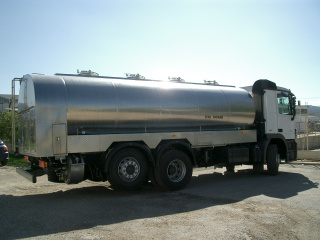

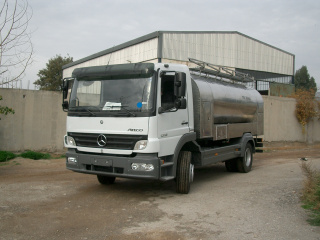

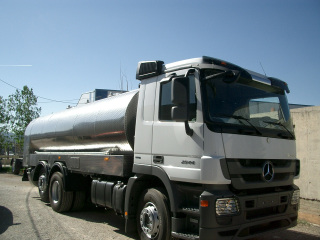

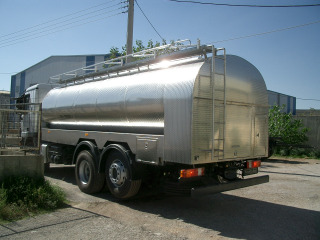

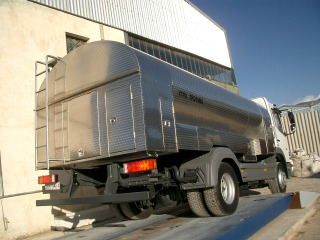

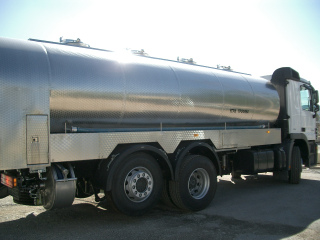

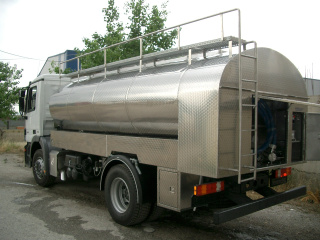

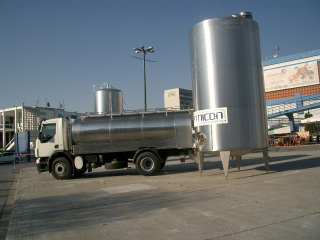

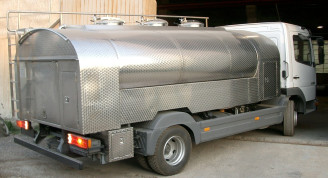

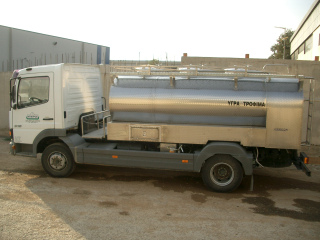

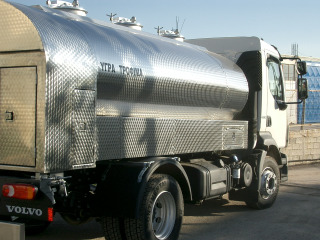

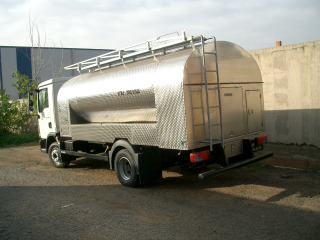

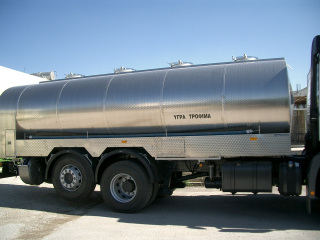

Milk Collection and transportation Tankers

Ermicon Tankers are made entirely of stainless steel aisi 304

Capacity 2000-25000ltr

Elliptical or cylindrical shape

Separated compartments

St. st. Manhole Φ450 with manhole cover

Double active valve

Inlet and outlet st.st. collector with butterfly valves DN50/DN65

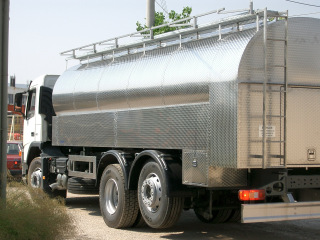

Stainless steel ladder

Corridor on the top of the tank with st.st. banister

Stainless steel bicycle protection bars, optional

According to American and European standards

Eco-friendly polyurethane foam Insulation (sandwich)

Cleaning installation with spray balls in each compartment for connecting to the factory CIP

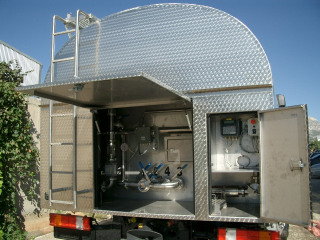

Metering system GEA DIESSEL installed in a cabinet behind or on the side of the tanker.

Hydraulic system constituted of:

Hydraulic pump, which will be adapted to the PTO of the vehicle

Oil container

Electromagnetic valve for the automatic operation of the milk pump by the metering system and a safety valve

Hydraulic pipes

Self priming milk pump with hydraulic motor

Air eliminator with de-aeration valve

Metering system with metering unit accuracy 2‰

Temperature sensor

Printer for print out of receipt to each supplier and total tour analysis

Optional:

Barcode reader

Data transfer to PC

SMS after each collection

GPRS

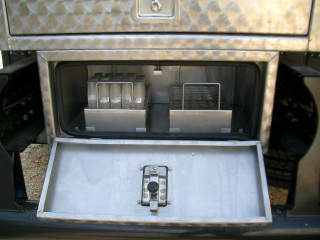

Sampler

Heating for the cabinets

Metering Systems on tankers

Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Όνομα
Probenehmer Flaschen

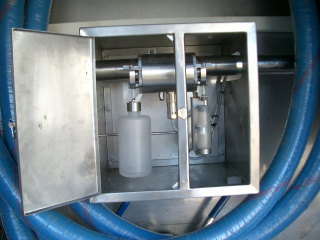

Probenehmer Doppel 2
Probenehmer Doppel 1

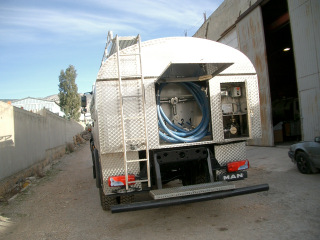

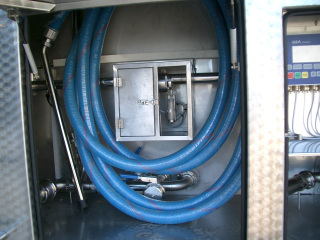

Metering System in Cabinet

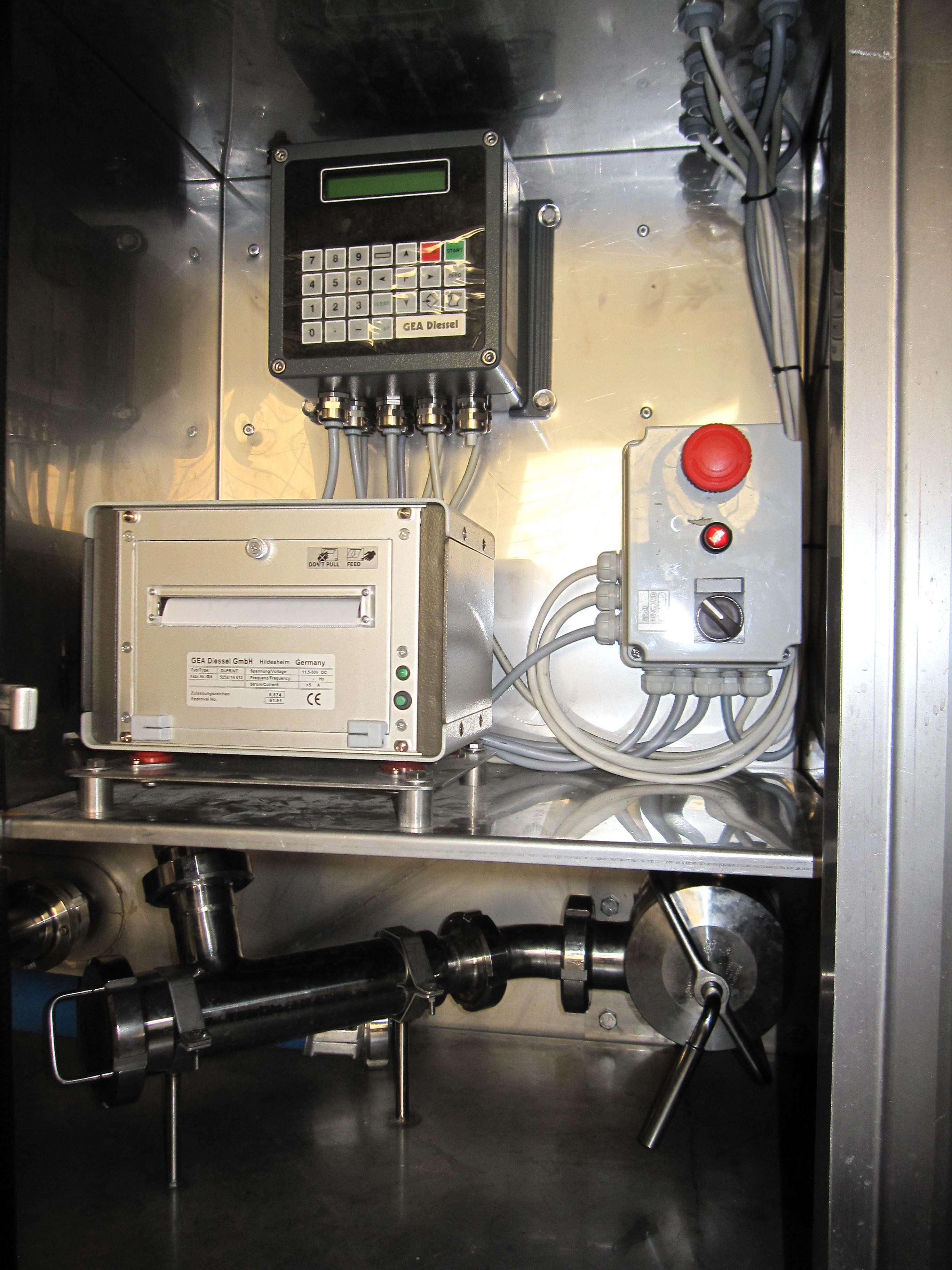

Metering system with Printer
Sampler
Metering System
Metering System - Gea Flash

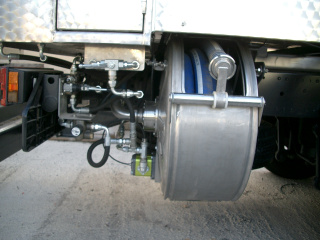

Tube roller
